#include "XilinxConfigurationAccessPort.h"

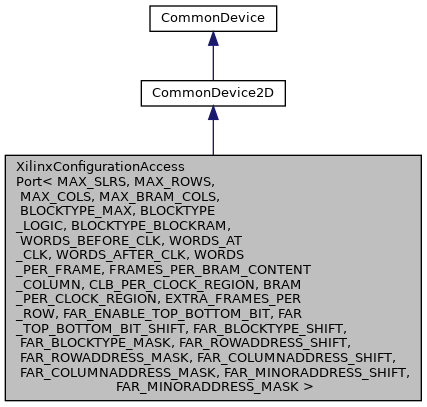

Inheritance diagram for XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >:

[legend]

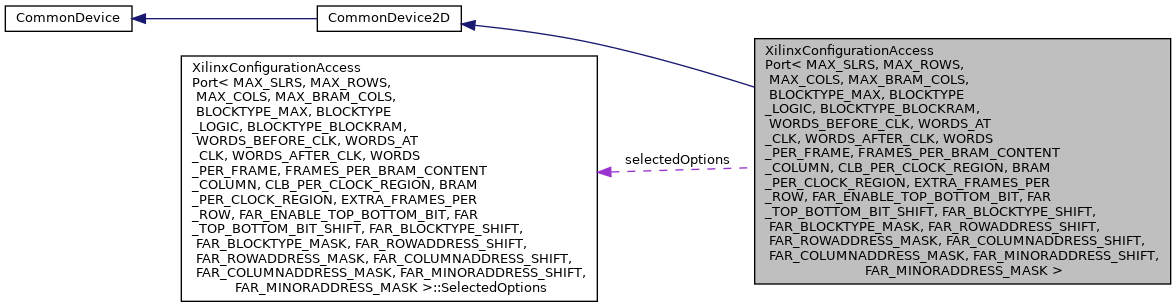

Collaboration diagram for XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >:

[legend]

Classes
struct	SelectedOptions

Public Types
enum class	MergeOP { SET , XOR , OR , AND }

Public Member Functions
virtual void	ensureInitializedBitstreamArrays ()=0

virtual int	getDeviceByIDCODE (int)=0

virtual int	getDeviceByIDCODEorThrow (int)=0

virtual int	getDeviceByName (std::string)=0

virtual int	getDeviceByNameOrThrow (std::string)=0

virtual std::string	getFrameType (int, int, int)=0

virtual void	initializeResourceStringParameters ()=0

virtual void	outputBitstreamEmptySLRHeaderSequence (std::ofstream &, int, bool, Endianness)=0

virtual void	outputBitstreamEmptySLRWrapUpSequence (std::ofstream &, int, bool, Endianness)=0

virtual void	outputBitstreamGlobalFooterSequence (std::ofstream &, bool, Endianness)=0

virtual void	outputBitstreamGlobalHeaderSequence (std::ofstream &, bool, Endianness)=0

virtual void	outputBitstreamSLRFooterBitstreamSequence (std::ofstream &, int, bool, Endianness)=0

virtual void	outputBitstreamSLRHeaderAfterBitstreamSequence (std::ofstream &, int, bool, Endianness)=0

virtual void	outputBitstreamSLRHeaderBitstreamSequence (std::ofstream &, int, bool, Endianness)=0

virtual void	outputBitstreamSLRWrapUpSequence (std::ofstream &, int, bool, Endianness)=0

virtual void	setDevice (int, std::string="")=0

virtual void	setDeviceByIDCODEOrThrow (int)=0

virtual void	setDeviceByNameOrThrow (std::string)=0

virtual void	setDeviceByPartNameOrThrow ()=0

	XilinxConfigurationAccessPort ()

virtual	~XilinxConfigurationAccessPort ()

Public Member Functions inherited from CommonDevice2D
	CommonDevice2D ()

void	region (std::string, Rect2D)

virtual	~CommonDevice2D ()

Public Member Functions inherited from CommonDevice
	CommonDevice ()

void	log (std::string message)

void	printMessage (std::string message)

void	warn (std::string message)

virtual	~CommonDevice ()

Public Attributes
uint32_t *	bitstreamBegin

uint32_t *	bitstreamBRAM [MAX_ROWS][MAX_BRAM_COLS]

uint32_t *	bitstreamCLB [MAX_ROWS][MAX_COLS]

uint32_t *	bitstreamEnd

bool	bitstreamHasValidData

std::string	designName

std::string	fileDate

std::string	fileTime

std::streamoff	headerLocationOfRemainingFileLength
	gets set by outputBITheader() and gets used by outputBITheaderLengthField(). More...

std::string	initializedBitstreamParamsShortPartName
	the partName of currently initialized resource string parameters More...

std::string	initializedBitstreamShortPartName
	The partName of currently initialized bitstream buffers. More...

std::string	initializedResourceStringShortPartName
	the partName of currently initialized resource string parameters More...

Endianness	loadedBitstreamEndianness
	The endianess of the currently loaded bitstream. More...

bool	LUT_isFrameUnusedForResourceLetter [256]

int	LUT_numberOfFramesForResourceLetter [256]

std::string	LUT_typeOfFrameForResourceLetter [256]

int	maxNumberOfBRAMCols

int	maxNumberOfCols

int	numberOfBRAMCols [MAX_ROWS]

int	numberOfBRAMsBeforeCol [MAX_ROWS][MAX_COLS]

int	numberOfCols [MAX_ROWS]

int	numberOfFramesBeforeCol [MAX_ROWS][MAX_COLS]

int	numberOfFramesPerRow [MAX_ROWS]

int	numberOfRows

int	numberOfSLRs

int	numberOfWordsPerRow [MAX_ROWS]

std::string	partName

char	resourceString [MAX_ROWS][MAX_COLS]

struct XilinxConfigurationAccessPort::SelectedOptions	selectedOptions

struct {
int fromRow

uint32_t IDCODE

int rowsInBottomHalf

int rowsInTopHalf

int toRow

}	SLRinfo [MAX_SLRS]

Public Attributes inherited from CommonDevice2D
std::vector< Rect2D >	regionSelection

Public Attributes inherited from CommonDevice
int	enableLog

int	enableWarn

std::string	instanceName

Detailed Description

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>
class XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >

Definition at line 66 of file XilinxConfigurationAccessPort.h.

Member Enumeration Documentation

◆ MergeOP

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

enum XilinxConfigurationAccessPort::MergeOP

strong

Enumerator
SET
XOR
OR
AND

Definition at line 88 of file XilinxConfigurationAccessPort.h.

         {
             SET, XOR, OR, AND
         };

Constructor & Destructor Documentation

◆ XilinxConfigurationAccessPort()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::XilinxConfigurationAccessPort ( )

inline

Definition at line 70 of file XilinxConfigurationAccessPort.h.

         {
             bitstreamBegin = nullptr;
             initializedBitstreamShortPartName = "";
             initializedBitstreamParamsShortPartName = "";
             initializedResourceStringShortPartName = "";
             loadedBitstreamEndianness = Endianness::BE;
             SLRinfo[0] = {0, 0, 0};
             numberOfRows = 0;
         };

◆ ~XilinxConfigurationAccessPort()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::~XilinxConfigurationAccessPort ( )

inlinevirtual

Definition at line 81 of file XilinxConfigurationAccessPort.h.

         {
             if(bitstreamBegin != nullptr)
                 delete bitstreamBegin;
         };

References XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::bitstreamBegin.

Member Function Documentation

◆ ensureInitializedBitstreamArrays()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual void XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::ensureInitializedBitstreamArrays ( )

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

Referenced by flexiMerge().

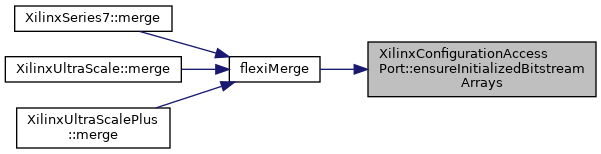

Here is the caller graph for this function:

◆ getDeviceByIDCODE()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::getDeviceByIDCODE ( int )

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

◆ getDeviceByIDCODEorThrow()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::getDeviceByIDCODEorThrow ( int )

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

◆ getDeviceByName()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::getDeviceByName ( std::string )

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

◆ getDeviceByNameOrThrow()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::getDeviceByNameOrThrow ( std::string )

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

◆ getFrameType()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual std::string XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::getFrameType	(	int	,
		int	,
		int
	)

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

◆ initializeResourceStringParameters()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual void XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::initializeResourceStringParameters ( )

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

◆ outputBitstreamEmptySLRHeaderSequence()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual void XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::outputBitstreamEmptySLRHeaderSequence	(	std::ofstream &	,
		int	,
		bool	,
		Endianness
	)

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

◆ outputBitstreamEmptySLRWrapUpSequence()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual void XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::outputBitstreamEmptySLRWrapUpSequence	(	std::ofstream &	,
		int	,
		bool	,
		Endianness
	)

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

◆ outputBitstreamGlobalFooterSequence()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual void XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::outputBitstreamGlobalFooterSequence	(	std::ofstream &	,
		bool	,
		Endianness
	)

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

◆ outputBitstreamGlobalHeaderSequence()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual void XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::outputBitstreamGlobalHeaderSequence	(	std::ofstream &	,
		bool	,
		Endianness
	)

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

◆ outputBitstreamSLRFooterBitstreamSequence()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual void XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::outputBitstreamSLRFooterBitstreamSequence	(	std::ofstream &	,
		int	,
		bool	,
		Endianness
	)

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

◆ outputBitstreamSLRHeaderAfterBitstreamSequence()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual void XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::outputBitstreamSLRHeaderAfterBitstreamSequence	(	std::ofstream &	,
		int	,
		bool	,
		Endianness
	)

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

◆ outputBitstreamSLRHeaderBitstreamSequence()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual void XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::outputBitstreamSLRHeaderBitstreamSequence	(	std::ofstream &	,
		int	,
		bool	,
		Endianness
	)

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

◆ outputBitstreamSLRWrapUpSequence()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual void XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::outputBitstreamSLRWrapUpSequence	(	std::ofstream &	,
		int	,
		bool	,
		Endianness
	)

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

◆ setDevice()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual void XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::setDevice	(	int	,
		std::string	= `""`
	)

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

◆ setDeviceByIDCODEOrThrow()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual void XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::setDeviceByIDCODEOrThrow ( int )

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

◆ setDeviceByNameOrThrow()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual void XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::setDeviceByNameOrThrow ( std::string )

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

◆ setDeviceByPartNameOrThrow()

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

virtual void XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::setDeviceByPartNameOrThrow ( )

pure virtual

Implemented in XilinxUltraScalePlus, XilinxUltraScale, and XilinxSeries7.

Member Data Documentation

◆ bitstreamBegin

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

uint32_t* XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::bitstreamBegin

Definition at line 115 of file XilinxConfigurationAccessPort.h.

Referenced by XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::XilinxConfigurationAccessPort(), and XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::~XilinxConfigurationAccessPort().

◆ bitstreamBRAM

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

uint32_t* XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::bitstreamBRAM[MAX_ROWS][MAX_BRAM_COLS]

Definition at line 117 of file XilinxConfigurationAccessPort.h.

Referenced by fastMerge(), and flexiMerge().

◆ bitstreamCLB

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

uint32_t* XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::bitstreamCLB[MAX_ROWS][MAX_COLS]

Definition at line 116 of file XilinxConfigurationAccessPort.h.

Referenced by fastMerge(), and flexiMerge().

◆ bitstreamEnd

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

uint32_t* XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::bitstreamEnd

Definition at line 118 of file XilinxConfigurationAccessPort.h.

◆ bitstreamHasValidData

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

bool XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::bitstreamHasValidData

Definition at line 114 of file XilinxConfigurationAccessPort.h.

◆ designName

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

std::string XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::designName

Definition at line 106 of file XilinxConfigurationAccessPort.h.

◆ fileDate

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

std::string XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::fileDate

Definition at line 108 of file XilinxConfigurationAccessPort.h.

◆ fileTime

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

std::string XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::fileTime

Definition at line 109 of file XilinxConfigurationAccessPort.h.

◆ fromRow

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::fromRow

Definition at line 138 of file XilinxConfigurationAccessPort.h.

◆ headerLocationOfRemainingFileLength

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

std::streamoff XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::headerLocationOfRemainingFileLength

gets set by outputBITheader() and gets used by outputBITheaderLengthField().

Definition at line 103 of file XilinxConfigurationAccessPort.h.

◆ IDCODE

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

uint32_t XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::IDCODE

Definition at line 137 of file XilinxConfigurationAccessPort.h.

◆ initializedBitstreamParamsShortPartName

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

std::string XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::initializedBitstreamParamsShortPartName

the partName of currently initialized resource string parameters

Definition at line 121 of file XilinxConfigurationAccessPort.h.

Referenced by XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::XilinxConfigurationAccessPort().

◆ initializedBitstreamShortPartName

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

std::string XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::initializedBitstreamShortPartName

The partName of currently initialized bitstream buffers.

Definition at line 112 of file XilinxConfigurationAccessPort.h.

Referenced by XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::XilinxConfigurationAccessPort().

◆ initializedResourceStringShortPartName

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

std::string XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::initializedResourceStringShortPartName

the partName of currently initialized resource string parameters

Definition at line 134 of file XilinxConfigurationAccessPort.h.

Referenced by XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::XilinxConfigurationAccessPort().

◆ loadedBitstreamEndianness

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

Endianness XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::loadedBitstreamEndianness

The endianess of the currently loaded bitstream.

Definition at line 113 of file XilinxConfigurationAccessPort.h.

Referenced by XilinxSeries7::merge(), XilinxUltraScale::merge(), XilinxUltraScalePlus::merge(), and XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::XilinxConfigurationAccessPort().

◆ LUT_isFrameUnusedForResourceLetter

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

bool XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::LUT_isFrameUnusedForResourceLetter[256]

Definition at line 145 of file XilinxConfigurationAccessPort.h.

◆ LUT_numberOfFramesForResourceLetter

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::LUT_numberOfFramesForResourceLetter[256]

Definition at line 143 of file XilinxConfigurationAccessPort.h.

◆ LUT_typeOfFrameForResourceLetter

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

std::string XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::LUT_typeOfFrameForResourceLetter[256]

Definition at line 144 of file XilinxConfigurationAccessPort.h.

◆ maxNumberOfBRAMCols

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::maxNumberOfBRAMCols

Definition at line 127 of file XilinxConfigurationAccessPort.h.

◆ maxNumberOfCols

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::maxNumberOfCols

Definition at line 126 of file XilinxConfigurationAccessPort.h.

◆ numberOfBRAMCols

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::numberOfBRAMCols[MAX_ROWS]

Definition at line 124 of file XilinxConfigurationAccessPort.h.

◆ numberOfBRAMsBeforeCol

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::numberOfBRAMsBeforeCol[MAX_ROWS][MAX_COLS]

Definition at line 129 of file XilinxConfigurationAccessPort.h.

◆ numberOfCols

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::numberOfCols[MAX_ROWS]

Definition at line 125 of file XilinxConfigurationAccessPort.h.

◆ numberOfFramesBeforeCol

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::numberOfFramesBeforeCol[MAX_ROWS][MAX_COLS]

Definition at line 128 of file XilinxConfigurationAccessPort.h.

◆ numberOfFramesPerRow

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::numberOfFramesPerRow[MAX_ROWS]

Definition at line 130 of file XilinxConfigurationAccessPort.h.

◆ numberOfRows

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::numberOfRows

Definition at line 123 of file XilinxConfigurationAccessPort.h.

Referenced by XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::XilinxConfigurationAccessPort().

◆ numberOfSLRs

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::numberOfSLRs

Definition at line 122 of file XilinxConfigurationAccessPort.h.

◆ numberOfWordsPerRow

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::numberOfWordsPerRow[MAX_ROWS]

Definition at line 131 of file XilinxConfigurationAccessPort.h.

◆ partName

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

std::string XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::partName

Definition at line 107 of file XilinxConfigurationAccessPort.h.

◆ resourceString

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

char XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::resourceString[MAX_ROWS][MAX_COLS]

Definition at line 135 of file XilinxConfigurationAccessPort.h.

◆ rowsInBottomHalf

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::rowsInBottomHalf

Definition at line 139 of file XilinxConfigurationAccessPort.h.

◆ rowsInTopHalf

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::rowsInTopHalf

Definition at line 139 of file XilinxConfigurationAccessPort.h.

◆ selectedOptions

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

struct XilinxConfigurationAccessPort::SelectedOptions XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::selectedOptions

◆

struct { ... } XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::SLRinfo[MAX_SLRS]

Referenced by XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::XilinxConfigurationAccessPort().

◆ toRow

template<int MAX_SLRS, int MAX_ROWS, int MAX_COLS, int MAX_BRAM_COLS, int BLOCKTYPE_MAX, int BLOCKTYPE_LOGIC, int BLOCKTYPE_BLOCKRAM, int WORDS_BEFORE_CLK, int WORDS_AT_CLK, int WORDS_AFTER_CLK, int WORDS_PER_FRAME, int FRAMES_PER_BRAM_CONTENT_COLUMN, int CLB_PER_CLOCK_REGION, int BRAM_PER_CLOCK_REGION, int EXTRA_FRAMES_PER_ROW, int FAR_ENABLE_TOP_BOTTOM_BIT, int FAR_TOP_BOTTOM_BIT_SHIFT, int FAR_BLOCKTYPE_SHIFT, int FAR_BLOCKTYPE_MASK, int FAR_ROWADDRESS_SHIFT, int FAR_ROWADDRESS_MASK, int FAR_COLUMNADDRESS_SHIFT, int FAR_COLUMNADDRESS_MASK, int FAR_MINORADDRESS_SHIFT, int FAR_MINORADDRESS_MASK>

int XilinxConfigurationAccessPort< MAX_SLRS, MAX_ROWS, MAX_COLS, MAX_BRAM_COLS, BLOCKTYPE_MAX, BLOCKTYPE_LOGIC, BLOCKTYPE_BLOCKRAM, WORDS_BEFORE_CLK, WORDS_AT_CLK, WORDS_AFTER_CLK, WORDS_PER_FRAME, FRAMES_PER_BRAM_CONTENT_COLUMN, CLB_PER_CLOCK_REGION, BRAM_PER_CLOCK_REGION, EXTRA_FRAMES_PER_ROW, FAR_ENABLE_TOP_BOTTOM_BIT, FAR_TOP_BOTTOM_BIT_SHIFT, FAR_BLOCKTYPE_SHIFT, FAR_BLOCKTYPE_MASK, FAR_ROWADDRESS_SHIFT, FAR_ROWADDRESS_MASK, FAR_COLUMNADDRESS_SHIFT, FAR_COLUMNADDRESS_MASK, FAR_MINORADDRESS_SHIFT, FAR_MINORADDRESS_MASK >::toRow

Definition at line 138 of file XilinxConfigurationAccessPort.h.

The documentation for this class was generated from the following file:

src/Devices/Xilinx/XilinxConfigurationAccessPort.h

Classes

Public Types

Public Member Functions

Public Attributes

Detailed Description

Member Enumeration Documentation

◆ MergeOP

Constructor & Destructor Documentation

◆ XilinxConfigurationAccessPort()

◆ ~XilinxConfigurationAccessPort()

Member Function Documentation

◆ ensureInitializedBitstreamArrays()

◆ getDeviceByIDCODE()

◆ getDeviceByIDCODEorThrow()

◆ getDeviceByName()

◆ getDeviceByNameOrThrow()

◆ getFrameType()

◆ initializeResourceStringParameters()

◆ outputBitstreamEmptySLRHeaderSequence()

◆ outputBitstreamEmptySLRWrapUpSequence()

◆ outputBitstreamGlobalFooterSequence()

◆ outputBitstreamGlobalHeaderSequence()

◆ outputBitstreamSLRFooterBitstreamSequence()

◆ outputBitstreamSLRHeaderAfterBitstreamSequence()

◆ outputBitstreamSLRHeaderBitstreamSequence()

◆ outputBitstreamSLRWrapUpSequence()

◆ setDevice()

◆ setDeviceByIDCODEOrThrow()

◆ setDeviceByNameOrThrow()

◆ setDeviceByPartNameOrThrow()

Member Data Documentation

◆ bitstreamBegin

◆ bitstreamBRAM

◆ bitstreamCLB

◆ bitstreamEnd

◆ bitstreamHasValidData

◆ designName

◆ fileDate

◆ fileTime

◆ fromRow

◆ headerLocationOfRemainingFileLength

◆ IDCODE

◆ initializedBitstreamParamsShortPartName

◆ initializedBitstreamShortPartName

◆ initializedResourceStringShortPartName

◆ loadedBitstreamEndianness

◆ LUT_isFrameUnusedForResourceLetter

◆ LUT_numberOfFramesForResourceLetter

◆ LUT_typeOfFrameForResourceLetter

◆ maxNumberOfBRAMCols

◆ maxNumberOfCols

◆ numberOfBRAMCols

◆ numberOfBRAMsBeforeCol

◆ numberOfCols

◆ numberOfFramesBeforeCol

◆ numberOfFramesPerRow

◆ numberOfRows

◆ numberOfSLRs

◆ numberOfWordsPerRow

◆ partName

◆ resourceString

◆ rowsInBottomHalf

◆ rowsInTopHalf

◆ selectedOptions

◆

◆ toRow
